What Modbus TCP/IP Actually Is
Modbus TCP/IP is simply the Modbus protocol delivered through TCP/IP networks instead of serial lines. Traditional Modbus (often called Modbus RTU or Modbus ASCII) was originally created for communication over serial cables like RS-232 and RS-485. Those systems used a master–slave model and required precise timing, strict byte sequences, and a checksum at the end of every message to detect errors.
When Ethernet became widespread in industrial plants, there was strong demand for Modbus to run on Ethernet instead of serial wires. Instead of redesigning the protocol completely, engineers preserved the Modbus message format and placed the Modbus content inside TCP/IP packets. That means Modbus TCP/IP:
- keeps the same function codes
- keeps the same PDU structure
- keeps the same addressing style (registers, coils, etc.)
- removes the serial checksum
- adds an MBAP header so that Modbus can travel inside TCP/IP
What makes Modbus TCP/IP powerful is that it relies on the Ethernet/TCP/IP stack for data delivery, routing, and error control. The Modbus Application Data Unit (ADU) becomes the payload wrapped by TCP, IP, and Ethernet headers.
The figure below shows how a Modbus message is transported inside an Ethernet frame:
- Ethernet Header (14 bytes) → Contains MAC addressing for local delivery
- IP Header (20 bytes) → Contains source/destination IP addresses
- TCP Header (20 bytes) → Handles port numbers, sequencing, and reliability
- Encapsulation Message → Contains the Modbus MBAP header + PDU
- CRC → Ethernet Frame Check Sequence
Because the Modbus message sits inside the “Encapsulation Message” portion of the frame, the protocol remains simple while taking full advantage of modern networking.
Why Modbus TCP/IP Became So Widely Used
Several factors explain why Modbus TCP/IP became one of the most dominant industrial communication protocols.
It is extremely easy to implement in both hardware and software. Many microcontrollers, PLCs, and embedded systems can support it with little effort. Manufacturers do not have to pay license fees, which encourages widespread adoption. The protocol runs on ordinary Ethernet hardware, which means users do not need expensive, specialized communication modules. Even IT departments are comfortable with Modbus TCP/IP because it uses the same networking principles they already understand.
Engineers appreciate that Modbus TCP/IP is predictable. Devices respond in simple request–response cycles. Registers are easy to understand. The communication model does not change from manufacturer to manufacturer. Because it is so straightforward, troubleshooting is also easier than with many modern protocols.
The longevity of Modbus TCP/IP is partly due to this simplicity. Newer technologies evolve rapidly, but Modbus remains stable. A technician trained 20 years ago can still work with today’s devices because the protocol behaves the same. This consistency makes Modbus valuable for long-lasting industrial systems where equipment must be supported for decades.

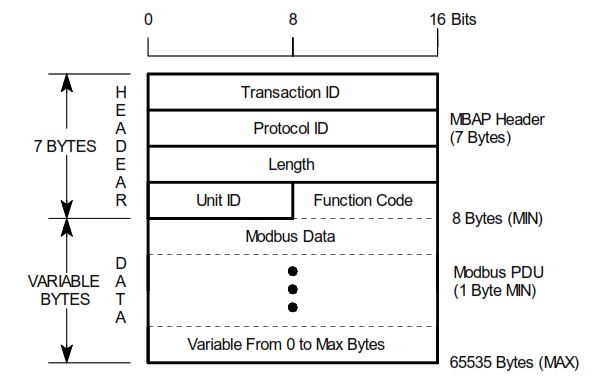

The ADU: How Modbus TCP/IP Messages Are Built
To understand Modbus TCP/IP deeply, you must understand the concept of the ADU (Application Data Unit). This is the complete Modbus message delivered across Ethernet. The ADU consists of two main parts: the MBAP header and the PDU.
The PDU is the same structure used in serial Modbus. The MBAP header is new and exists only in Modbus TCP/IP.
MBAP Header (7 bytes)
The MBAP header contains:
Transaction Identifier (2 bytes) — A number created by the client so it can match a response to a specific request. Clients may send several requests before responses arrive, so this identifier is essential.
Protocol Identifier (2 bytes) — Always zero for Modbus. Other values are reserved for future extensions but currently unused.
Length Field (2 bytes) — Indicates how many bytes follow: the Unit Identifier and the PDU.
Unit Identifier (1 byte) — Used for routing when communicating through a gateway to serial Modbus networks. In pure Ethernet systems, it is usually ignored and often set to 255 or 0.
Modbus PDU
The PDU contains:
- function code
- data (register address, quantity, values, etc.)
This PDU is identical to what serial Modbus uses. The absence of a checksum is intentional because TCP/IP already ensures data integrity.

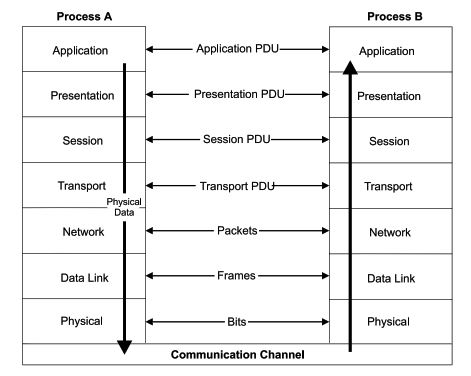

How Encapsulation Works Across Network Layers
One of the most important concepts in Modbus TCP/IP is encapsulation.
Encapsulation means placing one data unit inside another as messages move down through the OSI layers.
When a Modbus application generates a PDU, it adds the MBAP header, forming the ADU. But this ADU does not go onto the Ethernet cable by itself. Instead, it travels through a series of layers:
- TCP layer adds its header.
- IP layer adds its IP header.
- Ethernet layer adds its Ethernet frame header and trailer.
- Physical layer transmits the bits.
On the receiving side, the reverse happens:
- The physical layer receives signals and passes frames upward.
- Ethernet checks the CRC and strips its header.
- IP reads the IP header and strips it off.
- TCP removes its header and passes the ADU upward.
- The Modbus server inspects the MBAP header and interprets the PDU.
This layered approach lets Modbus rely on TCP/IP and Ethernet for routing, addressing, timing, and delivery, which greatly simplifies the protocol design.
Big-Endian Data Representation
Modbus TCP/IP uses Big-Endian byte order. This means that multi-byte values are transmitted starting with the most significant byte. If a register contains the value 0x1234, the first byte you see on the network is 0x12 and the next is 0x34. This is important for interpreting 16-bit and 32-bit values. Many automation systems produce incorrect data simply because the engineer assumes Little-Endian order.
Big-Endian representation applies to:
- register values
- lengths
- addresses
- multi-byte data fields
Because Modbus TCP/IP keeps this rule consistent, once the engineer understands it, they can interpret data confidently.
The Client–Server Model
Modbus TCP/IP is strictly client–server. The client initiates all communication. The server never sends unsolicited data. This design reduces complexity and prevents confusion about who talks first.
A client can be:
- a PLC
- an HMI
- a SCADA software
- an industrial computer
- a building management system
A server can be:
- an I/O device
- a sensor block
- a drive controller
- a power meter
- a gateway
The client decides which registers to read, when to read them, how often to send requests, and how many outstanding transactions to allow.
Modbus TCP/IP does not support broadcast messages because TCP is connection-oriented and unicast-only. Serial broadcasts exist but are not part of the Ethernet version unless a gateway translates them.
The Role of TCP in Modbus TCP/IP
TCP is crucial because it provides reliability. It removes the need for Modbus to include its own checksums or delivery guarantees. TCP ensures that:
- packets arrive in order
- no packets are duplicated
- lost packets are retransmitted
- data integrity is verified
- the server receives continuous streams of data
- both sides maintain a stable connection
TCP uses sequence numbers, acknowledgment numbers, checksums, and a sliding window to manage data flow. It also performs congestion control to avoid overwhelming devices.
Modbus TCP/IP by default uses port 502, which is reserved for Modbus servers.

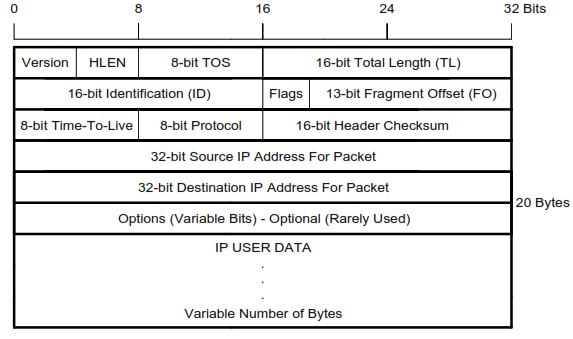

How the IP Layer Supports Modbus
To understand how Modbus TCP/IP messages move through the network layer, it is helpful to look at the structure of the IPv4 header. Each IP packet that carries a TCP segment—including Modbus data—uses the following header format.
This header contains critical information such as the source and destination IP addresses, the total length of the packet, fragmentation controls, the protocol identifier set to TCP, and the time-to-live value.
Modbus TCP/IP relies on these fields to ensure that packets reach the correct destination across routed networks. The Modbus ADU itself sits inside the TCP segment, which is carried as the ‘IP user data’ shown in the diagram.
ARP and RARP: How Modbus Ethernet Devices Locate Each Other
Ethernet does not use IP addresses directly; it uses MAC addresses. For a device to send a frame to another device, it needs the MAC address. However, applications—such as a Modbus TCP/IP client—typically work only with IP addresses, not MAC addresses.
ARP solves this. A device broadcasts a question: “Who has this IP address?” The device with that IP responds with its MAC address. The sender stores this mapping in an ARP table. Without ARP, Ethernet could not deliver IP packets.
RARP does the reverse but is rarely used today.
Ethernet MAC and Physical Layers
The Ethernet MAC layer wraps the IP packet into a frame. The frame includes:
- destination MAC
- source MAC
- EtherType
- payload
- frame check sequence (CRC)
Older half-duplex systems used CSMA/CD to detect collisions. Modern networks use full-duplex switching, eliminating collisions entirely and making Ethernet far more deterministic.
Below the MAC layer, the physical layer transmits bits over copper wires, fiber-optic cables, or wireless links. Ethernet’s widespread use means Modbus TCP/IP can operate across varied infrastructures without protocol changes.
Determinism in Modern Ethernet Networks
Many people believed that Ethernet could not be used for industrial control because it lacked determinism. Early networks suffered from unpredictable collision delays. Today, that limitation is solved using:
- full-duplex switching
- managed switches
- traffic prioritization
- VLAN isolation
- improved NIC hardware
- faster link speeds
Because of these improvements, Ethernet provides stable response times suitable for real-time monitoring and moderate-speed control applications. Modbus TCP/IP systems benefit greatly from these advancements.
Modbus Function Codes in TCP/IP
Function codes tell the server what action to perform. The function codes themselves do not change in Modbus TCP/IP. They include reading coils, reading discrete inputs, reading holding registers, writing registers, and more.
Widely used function codes include:
- 01: Read Coils
- 02: Read Discrete Inputs
- 03: Read Holding Registers
- 04: Read Input Registers
- 05: Write Single Coil
- 06: Write Single Register
- 15: Write Multiple Coils
- 16: Write Multiple Registers
More advanced function codes exist but are less commonly implemented across all devices. The consistency of these codes across vendors is one reason Modbus is so easy to integrate.
Exception Responses
If a server cannot fulfill a request, it returns an exception. Instead of responding with the original function code, it adds 0x80 to the function code and places an exception code in the data field.
Common exceptions include:
- illegal function
- illegal data address
- illegal data value
- device failure
- gateway path unavailable
- gateway target device failed to respond
These exceptions provide immediate feedback so that engineers can identify configuration mistakes or unsupported operations.
A Step-By-Step Modbus TCP/IP Transaction Example
Imagine a monitoring system reading four coils from a remote I/O device. The client constructs a Modbus PDU specifying the function code and the coil range. Then it adds the MBAP header, forming the ADU. This ADU travels down to TCP, where source and destination ports, sequence numbers, and a checksum are added. IP places this TCP segment into a packet with source/destination IP addresses. Ethernet then wraps the IP packet into a frame with source/destination MAC addresses and CRC.
As the frame moves across switches, each switch examines the MAC header and forwards the frame. At the server, the Ethernet layer removes its header and passes the IP packet upward. IP removes its header and sends the TCP segment upward. TCP removes its header and checks integrity. Finally, the Modbus server receives the ADU, validates it, and interprets the PDU. It reads the coil data, builds a response ADU, and sends it back through the same process in reverse.
This encapsulation and de-encapsulation process might sound heavy, but it happens extremely fast, making Modbus TCP/IP suitable for many industrial cycles.
Typical Problems and Their Causes
Common issues arise when communication does not behave as expected. Many problems involve simple configuration errors. If a device does not respond, the cause might be an incorrect IP address, a subnet mismatch, a blocked port, or a firewall rule. Sometimes the device is reachable, but Modbus requests fail because the function code is not supported or the register address does not exist.
Time-outs can occur when network traffic is heavy or when the client sends requests more frequently than the server can handle. Sometimes the issue is caused by poor cable connections or damaged hardware. In other cases, the device may use different interpretations of register addressing, especially when manufacturers document registers starting at 1 instead of 0. This mismatch often leads to requests targeting the wrong memory area.
Another common source of confusion is endianness. Many systems store 32-bit or 64-bit values using multiple 16-bit Modbus registers. If the receiving system interprets these registers in the wrong order, word swapping or byte swapping can occur. This results in floating-point numbers that appear completely incorrect. The problem is not with Modbus itself but with how multi-register values are interpreted by each device.
When troubleshooting Modbus TCP/IP, it is important to separate application-level issues from network-level issues. If a device does not respond at all, the network layer is likely the cause. If the device responds with an exception code, the Modbus configuration is likely the issue. If the values appear incorrect, endianness or register mapping is likely the cause. Understanding this difference makes problem-solving much faster.
Why the MBAP Header Matters
The MBAP header is the key structural difference between Modbus TCP/IP and serial Modbus. The Transaction Identifier inside the header allows a client to send multiple requests without waiting for previous responses. With serial Modbus, only one request can be active at a time, because the master must wait for a reply before sending the next query. Ethernet is much faster and supports parallelism, so the transaction identifier brings Modbus up to speed with modern networking.
The Protocol Identifier is almost always zero, but its presence allows Modbus to coexist inside the TCP/IP stack alongside other potential protocols in the future. The Length Field makes it easier for devices to determine how much Modbus data remains without scanning for terminating bytes. Finally, the Unit Identifier is essential for systems using gateways. Many industrial sites have Ethernet controllers at the top of the network that communicate with dozens of serial Modbus devices through a gateway or communication bridge. The Unit Identifier ensures the correct serial slave receives the message.
Serial Modbus uses an address at the start of the frame, but that field cannot be reused inside TCP/IP because Ethernet and IP have their own addressing systems. Without the MBAP header, Modbus TCP/IP would not have a consistent way to direct messages through gateways or handle multiple concurrent requests.
How Gateways Extend Modbus TCP/IP
Modbus TCP/IP is often used together with Modbus RTU through gateways. A gateway is a device that speaks Modbus TCP/IP on its Ethernet side and Modbus RTU on its serial side. Many factories installed Modbus RTU devices decades ago, and replacing all of them would be expensive. By using a gateway, modern systems can access those older serial devices without changing anything except the top-level control system.
Gateways interpret the MBAP Unit Identifier as the serial slave address. When the Modbus TCP/IP client sends a request, the gateway extracts the PDU and forwards it over the serial network. When the RTU device responds, the gateway wraps the result back inside the MBAP/TCP/IP/Ethernet layers and sends it to the client. This method allows multiple serial devices to appear as TCP/IP devices on the network.
Gateways can also convert addressing schemes, translate between different Modbus variants, or buffer serial responses to avoid slowing down Ethernet traffic. A good gateway can significantly improve performance, especially in systems where many serial devices need to be polled rapidly.
How Industrial Devices Use Registers
One reason Modbus remains popular is the register model. The protocol exposes device data through simple memory locations. A device may provide:
- coil states representing digital outputs
- discrete inputs representing digital inputs
- holding registers for configuration and process values
- input registers for measured data
Holding registers are the most commonly used memory area. They store configuration values, sensor readings, actuator statuses, and operational parameters. Many devices also encode 32-bit values using two consecutive registers. Some devices store signed integers, others store unsigned integers, and others store floating-point numbers. Manufacturers usually document these differences clearly.
Modbus does not define the meaning of each register. It only defines how the registers are read or written. The manufacturer determines how many registers exist and what each register contains. This flexibility makes Modbus adaptable but also means that proper documentation is essential.
Performance Considerations
Modbus TCP/IP is fast because Ethernet is fast, but the speed you experience depends on many factors. If a client repeatedly polls a large number of devices, the overall performance depends on how quickly the server responds. Some devices can respond almost instantly, while others may take tens of milliseconds because they must process the request internally.
Network design also affects performance. A single congested switch, overloaded network interface, or misconfigured VLAN can cause communication delays. Firewalls, NAT devices, or VPN tunnels may introduce additional overhead. The TCP handshake, retransmissions, and congestion control mechanisms can also affect speed.
Even though Modbus TCP/IP is significantly faster than serial Modbus, it is not typically used for high-speed motion control or applications requiring microsecond latency. It works best for monitoring, SCADA polling, system configuration, slow to moderate control tasks, and general data exchange.
Modbus TCP/IP and SCADA Systems
SCADA systems rely heavily on Modbus TCP/IP. They use it to collect process values, alarms, time stamps, sensor readings, and system health data. A SCADA system may poll:
- tank level sensors
- flow meters
- pressure transmitters
- temperature modules
- electrical meters
- generators and switchgear
- remote I/O devices
- environmental controllers
Each device may expose dozens or hundreds of Modbus registers representing different aspects of the system. SCADA software typically polls the network at a fixed cycle frequency, such as every second or faster, depending on the application. Some systems spread requests evenly across the cycle to reduce network spikes. Others prioritize critical devices with faster polling intervals.
Modbus TCP/IP’s simple addressing model makes it ideal for SCADA because operators and engineers can easily locate data without complex configuration files. Many SCADA applications allow engineers to map registers visually, test communications with a diagnostic panel, and view raw Modbus values with minimal effort.
Industrial Security Considerations
Modbus TCP/IP does not include built-in security features. It was designed for isolated industrial networks, at a time when cyber threats were not as prominent. Modbus messages do not include encryption or authentication. If a malicious actor gains access to the network, they can potentially read or write registers in critical equipment.
For this reason, industrial networks often rely on external security measures:
- firewalls
- VLAN segmentation
- virtual private networks
- port restrictions
- intrusion detection systems
- read-only gateways for untrusted zones
- tight control of remote access
Some vendors have created secure variants using TLS tunnels or VPN-based Modbus. Many industries isolate their control networks physically, allowing access only to trusted systems. Even though Modbus TCP/IP lacks native security, proper network architecture can make it safe.
Why Many Devices Still Prefer Modbus TCP/IP Over New Protocols
Although newer protocols like IEC 61850, DNP3, and IEC -104 offer advanced capabilities, Modbus TCP/IP remains widely used because of its predictability. Engineers know exactly how it works. There is no complex browsing structure, no multi-layer object modeling, no intricate session management, and no vendor-specific behavior that changes across devices.
The protocol is highly stable. Devices built 20 years apart can still speak the same Modbus language. The addressing format is simple. The binary frame format is easy for embedded devices to parse. For manufacturers, including Modbus TCP/IP is inexpensive and straightforward. For users, it rarely requires more than basic configuration.
Many automation environments contain equipment that will remain in operation for decades. As long as Modbus continues to work reliably and efficiently, there is no strong motivation to replace it. Newer protocols often require more powerful hardware, deeper configuration knowledge, or complex certification processes. Modbus offers an alternative that continues to deliver practical value without complication.
Combining Modbus TCP/IP With Wireless Technologies
Another advantage of Modbus TCP/IP is its compatibility with wireless networking. Because it is built on standard TCP/IP, it can travel through Wi-Fi networks, radio links, point-to-point wireless bridges, cellular networks, and satellite connections. This flexibility is extremely useful for remote monitoring applications in water distribution, oil and gas equipment, solar power fields, and agricultural systems.
Wireless links introduce additional latency, but Modbus TCP/IP’s request–response structure handles it well. If a device is located several kilometers away, a wireless bridge can transmit Modbus packets without modification. Many industrial wireless radios have built-in features optimized for SCADA traffic, ensuring that Modbus frames are delivered reliably across long distances.
Using Modbus TCP/IP Over VPNs and Cloud Systems
Because Modbus TCP/IP relies on standard TCP/IP, it can also travel through VPN tunnels. A company can set up secure communication across public networks and still use Modbus for control and monitoring. Cloud platforms may collect data by polling devices across a secure gateway. Many modern industrial systems use edge computers that collect Modbus data locally and push it into cloud analytics platforms.
Even though cloud systems often favor modern messaging protocols like MQTT, the underlying data may still originate from Modbus TCP/IP devices installed in factories or remote locations. Many cloud solutions include built-in Modbus connectors, allowing them to poll devices over secure VPN links.
How Engineers Diagnose Modbus TCP/IP Problems
Because Modbus TCP/IP is layered on top of Ethernet and TCP/IP, troubleshooting usually follows a structured approach.
If the device does not respond at all, engineers check:
- whether the device can be pinged
- whether port 502 is open
- whether routing is correct
- whether firewalls are blocking the connection
If the device responds with an exception, they check:
- function codes
- register addresses
- supported features
If the values appear wrong, they check:
- register documentation
- byte order
- data types
- conversion functions
Diagnostic tools like packet analyzers, Modbus simulators, and test clients make it easier to examine raw traffic. Tools can display the MBAP header, the PDU, and even reconstruct entire sessions.
Because Modbus TCP/IP messages are short and predictable, analyzing them in Wireshark or other tools is straightforward. The protocol is often one of the easiest to debug.
The Future of Modbus TCP/IP
Modbus TCP/IP is likely to remain relevant for many years. Its simplicity ensures that new engineers can pick it up quickly. Its openness ensures that developers can implement it freely. Its compatibility with Ethernet ensures that it will work with future networking technologies without modification.
Even as the industrial automation world moves toward more advanced protocols, Modbus TCP/IP continues to act as the universal common language that ties old and new systems together. It works well for the majority of monitoring and control tasks. Many modern devices include Modbus TCP/IP purely because users expect it.
There may be additional secure extensions or transport methods created in the future, but the basic structure of Modbus TCP/IP will likely remain unchanged because the design is already stable and effective.
Conclusion
Modbus TCP/IP is a powerful combination of classic Modbus simplicity and modern Ethernet flexibility. It uses the same PDU structure as serial Modbus but adds the MBAP header to adapt it for TCP/IP. The protocol depends on Ethernet MAC addressing, IP routing, ARP resolution, TCP reliability, and physical-layer transmission.
Messages are easy to construct, and devices follow a clear client–server model. Function codes specify operations, while exception codes provide clear error information. Gateways allow Modbus TCP/IP to connect seamlessly with serial Modbus. The protocol works across wired networks, wireless systems, VPN tunnels, and even cloud platforms.
The enduring popularity of Modbus TCP/IP is not accidental. It is the result of decades of consistent, reliable performance and universal support across the industrial world. Its simplicity, openness, stability, and hardware compatibility make it one of the most important communication tools in automation. Even with advanced alternatives available, Modbus TCP/IP continues to be the backbone for many monitoring and control systems that must operate with certainty, clarity, and long-term reliability.
