Wireshark for DNP3: How to Capture, Filter, and Troubleshoot

DNP3 (Distributed Network Protocol 3.0) is the dominant SCADA protocol in North America for electric utilities, water systems, and oil and gas. It runs over TCP or UDP on port 20000.

Wireshark fully decodes DNP3 — data link layer, transport layer, and application layer. You can see every function code, object group, data point index, quality flag, and timestamp in plain text.

But DNP3 is more complex than Modbus. It has multi-fragment responses, unsolicited messages, class-based event polling, and CRC checks at the data link layer. Knowing which Wireshark filters to use and what to look for makes the difference between solving a problem in minutes and staring at packets for hours.

This guide covers capture setup, verified display filters, how to read decoded DNP3 packets, and how to diagnose the most common DNP3 communication problems.

1. How DNP3 Appears in Wireshark

Wireshark decodes DNP3 as three layers:

Layer	What It Shows
DNP3 Data Link Layer	Start bytes (0x0564), length, control, source/destination addresses, CRC
DNP3 Transport Layer	FIR/FIN bits (first/last fragment), sequence number
DNP3 Application Layer	Function code, object headers, data objects with values, quality flags, timestamps

The Info column shows a summary like:

READ - Request, Class 1, 2, 3, 0
RESPONSE - Solicited, Class 1, 2, 3, 0
UNSOLICITED RESPONSE - Class 1 Events

2. How to Capture DNP3 Traffic

Capture Filter

tcp port 20000

Or if DNP3 runs over UDP:

udp port 20000

Where to Capture

Location	When to Use
On the SCADA master	See all polls and responses from every outstation
On the communication front-end processor	If the master uses a separate comm server
On a network switch (port mirroring)	Non-intrusive capture
On a serial-to-Ethernet converter	If DNP3 serial traffic is converted to TCP

3. Decoding DNP3 on Non-Standard Ports

Wireshark decodes DNP3 automatically on port 20000. Many real-world installations use different ports (e.g., 4999, 5000, 19999, or vendor-specific ports).

If your DNP3 traffic appears as raw TCP data:

Fix: Use “Decode As”

1. Right-click a packet on the non-standard port
2. Select Decode As…
3. Set: Field = TCP port, Value = your port, Current = DNP 3.0
4. Click OK

Fix: Change Preferences

1. Go to Edit → Preferences → Protocols → DNP 3.0
2. Change the TCP Port and/or UDP Port values
3. Click OK

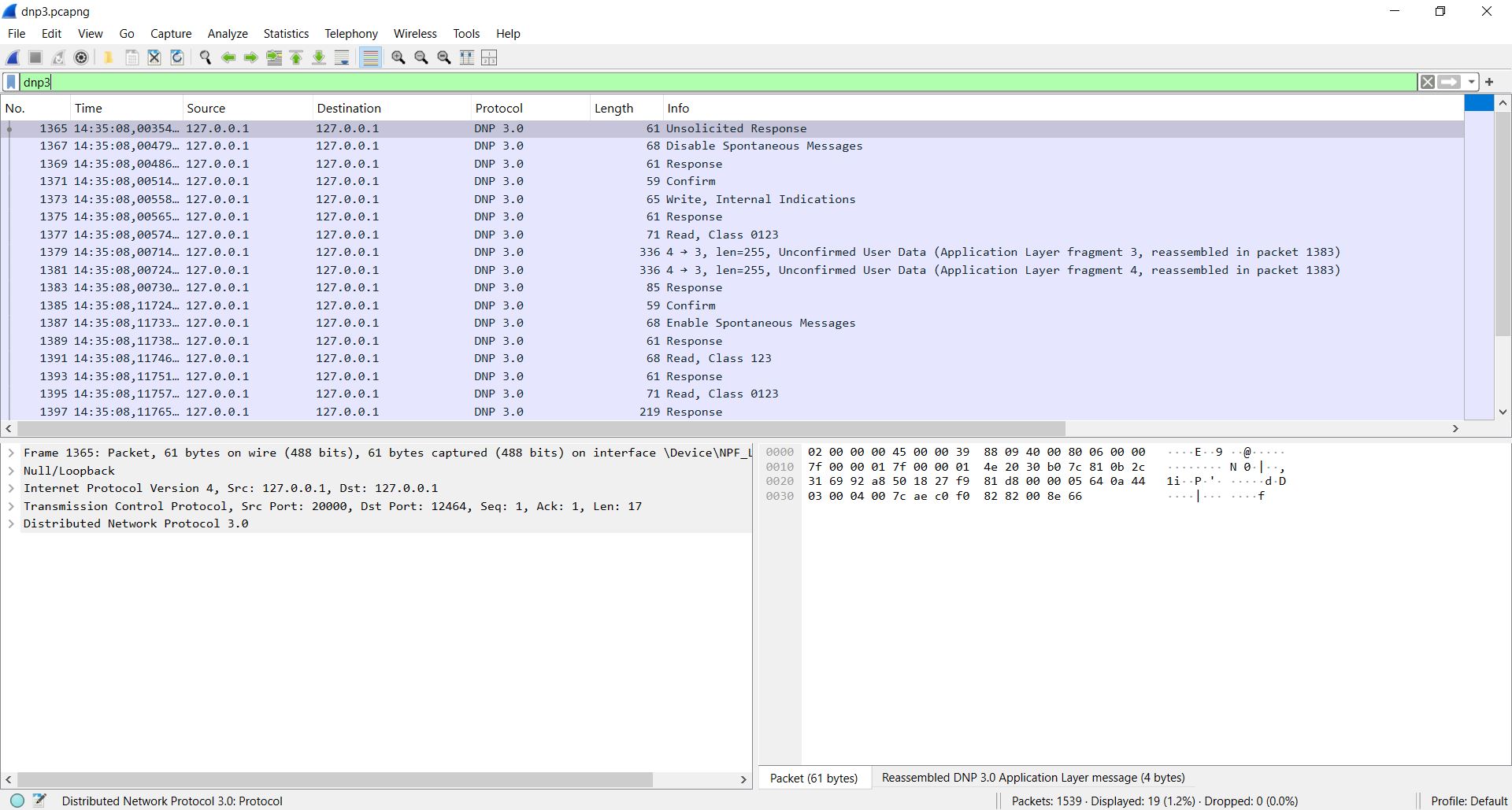

4. Display Filters for DNP3

All filter field names verified against the official Wireshark DNP3 Display Filter Reference (222 fields, versions 1.0.0 to 4.6.4).

Basic Filters

Filter	What It Shows
dnp3	All DNP3 traffic
tcp.port == 20000	All traffic on DNP3 port
tcp.dstport == 20000	Requests to outstations
tcp.srcport == 20000	Responses from outstations

Address Filters

Filter	What It Shows
dnp3.src	Source DNP3 address
dnp3.dst	Destination DNP3 address
dnp3.src == 1	Traffic from outstation address 1
dnp3.dst == 3	Traffic to outstation address 3

Function Code Filters

Filter	What It Shows
dnp3.al.func == 1	Read requests (FC 01)
dnp3.al.func == 129	Responses (FC 129 = 0x81)
dnp3.al.func == 130	Unsolicited responses (FC 130 = 0x82)
dnp3.al.func == 2	Write requests (FC 02)
dnp3.al.func == 3	Select (CROB select, FC 03)
dnp3.al.func == 4	Operate (CROB operate, FC 04)
dnp3.al.func == 5	Direct operate (FC 05)
dnp3.al.func == 6	Direct operate no ACK (FC 06)
dnp3.al.func == 20	Enable unsolicited (FC 20)
dnp3.al.func == 21	Disable unsolicited (FC 21)
dnp3.al.func == 23	Delay measurement (FC 23)
dnp3.al.func == 13	Cold restart (FC 13)
dnp3.al.func == 14	Warm restart (FC 14)

Application Layer Filters

Filter	What It Shows
dnp3.al.iin	Internal Indications (IIN) bits
dnp3.al.iin.rst	IIN — Device Restart bit
dnp3.al.iin.obju	IIN — Object Unknown
dnp3.al.iin.nfcn	IIN — No Function Code Support
dnp3.al.iin.cls1d	IIN — Class 1 Data Available
dnp3.al.iin.cls2d	IIN — Class 2 Data Available
dnp3.al.iin.cls3d	IIN — Class 3 Data Available
dnp3.al.obj	Object group and variation
dnp3.al.index	Object point index

Data Type Filters

Filter	What It Shows
dnp3.al.bit	Binary input value (single bit)
dnp3.al.2bit	Double-bit binary input value
dnp3.al.ana.int	Analog input value (16-bit integer)
dnp3.al.ana.float	Analog input value (float)
dnp3.al.ana.double	Analog input value (double)
dnp3.al.anaout.int	Analog output value (integer)
dnp3.al.anaout.float	Analog output value (float)
dnp3.al.cnt	Counter value
dnp3.al.timestamp	Object timestamp

Quality Flag Filters

Filter	What It Shows
dnp3.al.biq.b0 == 0	Binary input — Offline (not online)
dnp3.al.biq.b1 == 1	Binary input — Restart flag set
dnp3.al.biq.b2 == 1	Binary input — Comm Fail
dnp3.al.biq.b3 == 1	Binary input — Remote Force
dnp3.al.biq.b5 == 1	Binary input — Chatter Filter active
dnp3.al.aiq.b2 == 1	Analog input — Comm Fail
dnp3.al.aiq.b5 == 1	Analog input — Over-Range

CRC Filter

Filter	What It Shows
dnp.data_chunk.CRC.status	CRC check status for data chunks
dnp.hdr.CRC.status	CRC check status for the data link header

Combination Examples

All unsolicited responses from a specific outstation:

dnp3.al.func == 130 && dnp3.src == 5

All responses with Restart IIN bit set:

dnp3.al.iin.rst == 1

Analog input events with Comm Fail quality:

dnp3.al.aiq.b2 == 1

Filter by a specific point index:

dnp3.al.index == 42 && dnp3.al.ana.float

Slow responses (> 2 seconds between packets):

dnp3 && frame.time_delta > 2

5. How to Read a Decoded DNP3 Packet

Click on a DNP3 packet and expand the three layers:

Data Link Layer

DNP 3.0 Data Link Layer
    Start Bytes: 0x0564
    Length: 15
    Control: 0xc0 (DIR, PRM, FCV=0, FCB=0, Func: Unconfirmed User Data)
    Destination: 3
    Source: 1
    Header CRC: 0xABCD [correct]

• Source/Destination = DNP3 addresses (not IP addresses)
• DIR = direction (1 = master → outstation, 0 = outstation → master)
• PRM = primary message (1 = from initiator)

Transport Layer

DNP 3.0 Transport Layer
    FIR: 1, FIN: 1, Sequence: 0

• FIR = first fragment. FIN = last fragment. Both 1 = single-fragment message.
• If FIR=1 and FIN=0, the message is multi-fragment — look for the next fragment.

Application Layer

DNP 3.0 Application Layer
    Application Control: FIR, FIN, Sequence 0
    Function Code: RESPONSE (129)
    Internal Indications: Class 1 Events
    Object: Binary Input - Packed Format (Obj: 01, Var: 01)
        Index: 0, Value: 1
        Index: 1, Value: 0
    Object: Analog Input - 16-Bit (Obj: 30, Var: 01)
        Index: 0, Quality: Online, Value: 2301
        Index: 1, Quality: Online, Value: 1456

6. What a Healthy DNP3 Conversation Looks Like

A typical DNP3 TCP poll cycle:

#	Direction	DNP3 Info
1	Master → Outstation	READ – Class 1, 2, 3, 0
2	Outstation → Master	RESPONSE – Solicited, Binary Inputs, Analog Inputs, Counters
3	Master → Outstation	READ – Class 1, 2, 3, 0
4	Outstation → Master	RESPONSE – Solicited (no events, static data only)

Key signs of healthy communication:

• Every READ has a matching RESPONSE
• IIN bits show no errors (no Restart, no Object Unknown, no Comm Fail)
• All quality flags show Online
• Responses arrive within 100–500 ms
• No TCP retransmissions

7. Diagnosing No Response from an Outstation

Filter: dnp3 && ip.addr == <outstation IP>

What You See	Cause	Fix
READ sent, no RESPONSE	Outstation offline or not reachable	Ping the outstation. Check cable and port 20000.
TCP SYN, no SYN-ACK	Outstation is down or firewall blocks port 20000	Check power. Check firewall rules.
RESPONSE with IIN Restart bit	Outstation recently restarted	Master should send Confirm and re-enable unsolicited.
RESPONSE with IIN Object Unknown	Master requested an object the outstation does not support	Check the outstation’s device profile for supported objects.

8. Diagnosing Unsolicited Response Problems

DNP3 outstations can send unsolicited responses when events occur, without waiting for a poll.

Filter: dnp3.al.func == 130

Problem	What You See	Fix
No unsolicited responses	Outstation never sends FC 130	Master must send Enable Unsolicited (FC 20). Verify outstation config.
Unsolicited responses but master does not confirm	Outstation keeps retransmitting the same unsolicited response	Master must send Application Confirm after receiving unsolicited data.
Events missing	Outstation sends unsolicited but some events are lost	Check event buffer size on outstation. Buffer may overflow between polls.

9. Diagnosing Data Quality Issues

Every DNP3 data point has quality flags. Bad quality means the value is unreliable.

Filter: dnp3.al.biq.b0 == 0 (binary inputs not online) or dnp3.al.aiq.b2 == 1 (analog inputs with Comm Fail)

Quality Flag	Meaning	Common Cause
Not Online (b0=0)	Point is offline	I/O module failure, wiring problem
Restart (b1=1)	Value not updated since device restart	Device just restarted — wait for first scan
Comm Fail (b2=1)	Communication failure to the field device	Serial link down, I/O module not responding
Remote Force (b3=1)	Value is being forced by the master	Check if an operator forced this point
Local Force (b4=1)	Value is being forced locally	Check if someone forced this at the outstation
Over-Range (b5=1, analog only)	Analog value exceeds sensor range	Check sensor wiring. Check scaling.

10. Diagnosing CRC Errors

DNP3 uses CRC-16 checksums at the data link layer. Wireshark verifies every CRC.

Filter: dnp.hdr.CRC.status or dnp.data_chunk.CRC.status

If CRCs fail, the data link frame is corrupted. This usually means:

• Noise on the communication link (especially serial-to-Ethernet converters)
• Bad cable or connector
• Electrical interference near communication cables
• Baud rate mismatch (if converted from serial)

11. Diagnosing Slow Polls and Timeouts

Filter: dnp3 && frame.time_delta > 2

Symptom	Cause	Fix
Response takes > 1 second	Outstation overloaded or slow link	Reduce poll rate. Increase response timeout.
Multi-fragment response with long gaps	Large data set fragmented across many packets	Normal for integrity polls with thousands of points.
Timeout after partial response	Fragment lost or outstation buffer overflow	Check for TCP retransmissions. Reduce data request size.

12. Filtering by Point Index and Data Type

To track a specific point:

dnp3.al.index == 42

This shows all packets containing point index 42 — any object type. To narrow it down:

dnp3.al.index == 42 && dnp3.al.ana.float

This shows only packets where analog input index 42 appears with a float value.

Other useful combinations:

Filter	What It Tracks
dnp3.al.index == 0 && dnp3.al.bit	Binary input point 0
dnp3.al.index == 10 && dnp3.al.ana.int	Analog input point 10 (16-bit)
dnp3.al.index == 5 && dnp3.al.cnt	Counter point 5
dnp3.al.index == 0 && dnp3.al.anaout.float	Analog output point 0 (float)

13. Useful Wireshark Columns for DNP3 Analysis

Column Title	Type	Field Name
DNP3 Src Addr	Custom	dnp3.src
DNP3 Dst Addr	Custom	dnp3.dst
Function Code	Custom	dnp3.al.func
Delta Time	Custom	frame.time_delta_displayed
Source IP	Normal	ip.src
Destination IP	Normal	ip.dst

14. Common DNP3 Problems and What They Look Like in Wireshark

Problem	Wireshark Symptom	Filter
Outstation offline	TCP SYN with no SYN-ACK	tcp.flags.syn == 1 && tcp.port == 20000
Firewall blocking	TCP RST after SYN	tcp.flags.reset == 1 && tcp.port == 20000
Wrong DNP3 address	READ sent, outstation ignores (no RESPONSE)	dnp3.dst — verify address matches outstation config
Unsolicited not enabled	No FC 130 packets from outstation	dnp3.al.func == 130 — if empty, send Enable Unsolicited
Object not supported	RESPONSE with IIN Object Unknown	dnp3.al.iin.obju == 1
Device restarted	RESPONSE with IIN Restart	dnp3.al.iin.rst == 1
CRC errors	Data chunk CRC failures	dnp.data_chunk.CRC.status
Slow response	Large time delta between request and response	dnp3 && frame.time_delta > 2
Packet loss	TCP retransmissions	tcp.analysis.retransmission && tcp.port == 20000
Connection drops	TCP RST or FIN during active session	tcp.flags.reset == 1 && tcp.port == 20000

Summary

Wireshark decodes every layer of DNP3 — data link CRC, transport fragments, and full application layer with function codes, object groups, point values, quality flags, and timestamps.

The key things to remember:

• DNP3 runs on TCP/UDP port 20000. Use Decode As if your system uses a different port.
• Use dnp3 as the main display filter
• Use dnp3.al.func to filter by function code (1=Read, 129=Response, 130=Unsolicited)
• Use dnp3.src and dnp3.dst to filter by DNP3 address (not IP address)
• Use dnp3.al.iin.rst to find devices that have restarted
• Use dnp3.al.index to track a specific data point across the capture
• Use dnp3.al.biq.b2 or dnp3.al.aiq.b2 to find points with Comm Fail quality
• Check CRC status with dnp.hdr.CRC.status and dnp.data_chunk.CRC.status

💡 Tip: Use the free DNP3 Frame Decoder Tool to decode any DNP3 frame byte by byte — including data link CRC, transport header, function codes, and object headers.
